Architecture And Types Of Virtualization In Cloud Computing

The method of separating a service from the actual delivery method used to supply that service is known as virtualization. The technique of making a virtual replica of something, such as computer hardware, is called virtualization. The mainframe period is when it was originally created.



It entails utilizing specialized software to produce a virtual or software-created version of a computing resource rather than the actual version of the same resource. In order to maximize the use and flexibility of technology, virtualization enables different operating systems and applications to run simultaneously on the same computer and on the same hardware.



To put it another way, one of the primary cost-effective, hardware-reduction, and energy-saving strategies employed by cloud providers is virtualization. Through the use of virtualization, one physical instance of a resource or an application may be shared simultaneously by several users and businesses. By giving physical storage a logical name and instantly supplying a pointer to that physical resource, it does this.



In order to effectively supply Infrastructure-as-a-Service (IaaS) solutions for cloud computing, the word "virtualization" is frequently used to refer to hardware virtualization. In addition, virtualization technologies offer a virtual environment for networking, storage, and memory in addition to running programmes.



Work of Virtualization in Cloud Computing



Virtualization is a key technology that underpins cloud computing, enabling the efficient and flexible allocation of computing resources to meet the demands of modern applications. Virtualization enables multiple virtual instances of an operating system (OS) to run on a single physical machine, allowing multiple workloads to be consolidated onto a single server. This provides many benefits, including improved utilization of hardware resources, greater flexibility and agility in deploying and managing applications, and enhanced security and isolation between workloads.



In cloud computing, virtualization is used to abstract the underlying hardware resources from the software layer, enabling cloud providers to offer on-demand access to compute, storage, and networking resources through a web-based interface or API. This allows customers to quickly and easily provision and manage virtual machines (VMs) and other resources, paying only for what they use.



In cloud computing, virtualization is typically implemented using a combination of hardware and software technologies. The hypervisor is a key component of this infrastructure, providing the abstraction layer that allows multiple virtual instances of an OS to run on a single physical machine. Other key components include the management software used to provision and manage virtual resources, as well as the underlying hardware infrastructure, including servers, storage devices, and networking equipment.



Virtualization is a fundamental building block of cloud computing, enabling cloud providers to deliver on-demand access to a wide range of compute, storage, and networking resources. By abstracting the underlying hardware resources from the software layer, virtualization enables greater flexibility and agility in deploying and managing applications, while also improving resource utilization, security, and scalability.



Virtualization in cloud computing makes it easier to create virtual computers and guarantees the seamless operation of several operating systems. It runs different operating systems and contributes to the development of a virtual ecosystem for server operating systems and various storage devices.



An application or service that uses a virtual ecosystem is known as cloud computing. An ecosystem of this kind could be of a public or private nature. The requirement for a physical infrastructure is diminished by virtualization. Virtualization and cloud computing are increasingly frequently used interchangeably, and this unification is happening swiftly.



You will receive complex and advanced degrees of computing thanks to the collaboration between virtualization and cloud computing. It makes sure that programmes may be shared among several active users and corporate network threads. Scalability, effectiveness, and economic value are all provided by cloud computing. It provides solutions for simplifying task management.



Simply put, cloud computing and virtualization work together to give contemporary businesses a more affordable option to operate numerous operating systems on a single committed resource.



Types of Virtualization



There are six different types of virtualization commonly used in modern computing, each with its own unique characteristics and benefits.



1. Application Virtualization:



Application virtualization involves isolating applications from the underlying operating system and other applications, allowing them to run in a self-contained environment. This enables greater compatibility between applications and reduces the risk of conflicts between different software components. Application virtualization is commonly used in desktop virtualization environments.



2. Network VirtualizationL



Network virtualization involves creating virtual networks that operate independently of the physical network infrastructure. This allows for greater flexibility and scalability in deploying and managing network resources, as multiple virtual networks can coexist on the same physical network. Network virtualization is commonly used in software-defined networking (SDN) environments.



3. Desktop Virtualization:



Desktop virtualization involves creating virtual desktops that run on remote servers and are accessed by end-users over a network connection. This allows for greater flexibility in managing and deploying desktop environments, as well as improved security and reduced hardware costs. Desktop virtualization is commonly used in remote work environments and for managing large numbers of desktops in enterprise environments.



4. Storage Virtualization:



Storage virtualization involves abstracting the physical storage resources from the software layer, allowing multiple virtual storage resources to be created on top of a single physical storage device. This allows for greater flexibility and scalability in deploying and managing storage resources, as well as improved data protection and disaster recovery.



5. Server Virtualization:



Server virtualization is the most common type of virtualization used in cloud computing. It involves creating multiple virtual machines (VMs) on a single physical server, each running its own instance of an operating system and applications. This allows for greater resource utilization and flexibility, as multiple workloads can be consolidated onto a single server. The hypervisor is responsible for managing the virtualization layer and allocating resources to each VM.



6. Data Virtualization:



This type of virtualization involves gathering data from various sources and managing it in one location without knowing the technical details of how the data is gathered, stored, and formatted. The data is then arranged logically so that its virtual view can be accessed by interested parties and stakeholders, as well as users, through a variety of cloud services from a distance. Such large, powerful firms as Oracle, IBM, At scale, Cdata, etc. offer their services.



Architecture of Virtualization



The architecture of virtualization is a complex system of hardware and software components that work together to create virtual instances of computing resources. The virtualization architecture includes several layers of abstraction, each responsible for a specific aspect of the virtualization process.



1. Physical Hardware Layer:



The physical hardware layer consists of the physical servers, storage devices, and networking equipment that form the underlying infrastructure of the virtualization environment. This layer includes the CPUs, memory, disk drives, and network adapters that are used to provide the computing resources for virtual machines.



2. Hypervisor Layer:



The hypervisor layer, also known as the virtual machine monitor (VMM), is responsible for managing the virtualization layer and allocating resources to each virtual machine (VM). The hypervisor runs directly on the physical hardware and creates virtual machines by partitioning the physical resources into logical units.



3. Virtualization Management Layer:



The virtualization management layer is responsible for managing the virtual machines and other virtual resources, including networking and storage. This layer includes software components that allow administrators to create, configure, and manage virtual machines and other virtual resources, such as virtual networks and virtual storage devices.



4. Guest Operating System Layer:



The guest operating system layer consists of the operating systems and applications that run inside the virtual machines. Each virtual machine has its own copy of an operating system, which runs on top of the hypervisor layer.



5. Application Layer:



The application layer includes the applications and workloads that run inside the guest operating system. Each virtual machine can run multiple applications, depending on the resources allocated to it.



The virtualization architecture provides a layer of abstraction between the physical hardware and the software layer, enabling multiple virtual instances of an operating system or application to run on a single physical machine. The hypervisor layer is the key component of the virtualization architecture, responsible for managing the virtualization layer and allocating resources to each virtual machine.



The virtualization management layer provides the tools necessary to create and manage virtual machines and other virtual resources, such as virtual networks and virtual storage devices. The guest operating system layer and the application layer run inside the virtual machines, providing the environment in which applications and workloads can be executed.



The architecture of virtualization is a complex system of hardware and software components that work together to create virtual instances of computing resources. The virtualization architecture includes several layers of abstraction, each responsible for a specific aspect of the virtualization process, from the physical hardware layer to the application layer. Understanding the virtualization architecture is essential for designing, deploying, and managing virtualization environments.



Advantages of Virtualization in Cloud Computing:



Here are some of the advantages of virtualization in cloud computing:

---

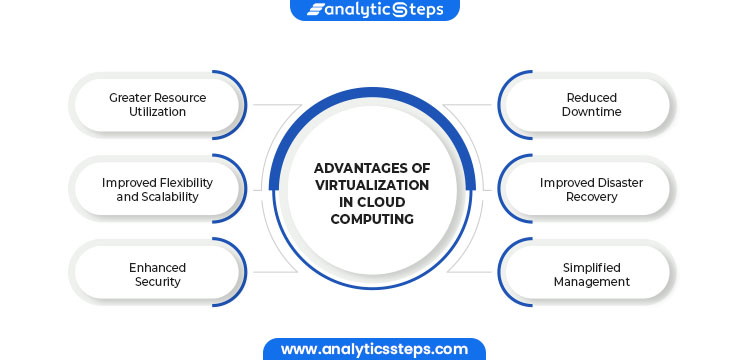

Advantages of Virtualization in Cloud Computing

---



1. Greater Resource Utilization:



Virtualization enables organizations to maximize the utilization of their physical computing resources by creating multiple virtual instances of an operating system or application on a single physical machine. This allows for greater resource utilization and efficiency, reducing the need for additional hardware and lowering overall IT costs.



2. Improved Flexibility and Scalability:



Virtualization provides greater flexibility and scalability in deploying and managing computing resources. Organizations can easily create, configure, and manage virtual machines, virtual networks, and virtual storage devices to meet changing demands, without the need for additional physical hardware.



3. Enhanced Security:



Virtualization enables organizations to isolate different workloads and applications from each other, providing enhanced security and reducing the risk of security breaches. By running applications and workloads in separate virtual environments, organizations can minimize the risk of data breaches and other security threats.



4. Reduced Downtime:



Virtualization provides high availability and fault tolerance, enabling organizations to reduce downtime and maintain business continuity. By replicating virtual machines and data across multiple physical servers, organizations can minimize the risk of data loss and ensure that critical workloads remain available even in the event of hardware failures.



5. Improved Disaster Recovery:



Virtualization enables organizations to create and manage disaster recovery environments more easily and cost-effectively. By replicating virtual machines and data across multiple physical servers, organizations can minimize the risk of data loss and ensure that critical workloads remain available in the event of a disaster.



6. Simplified Management:



Virtualization simplifies the management of IT infrastructure by centralizing management tasks and providing a unified management interface. Organizations can easily create, configure, and manage virtual machines, virtual networks, and virtual storage devices, reducing the need for specialized IT skills and minimizing management overhead.



Conclusion



Although the hoopla surrounding virtualization is continuously changing, the idea is actually rather ancient. However, its integration with cloud computing has not only broadened its use but also fundamentally altered how it is seen in the IT community. A mechanism for sharing whole IT infrastructures has evolved from what was formerly thought of as a way to exchange resources.



Virtualization may now be relied upon to provide pertinent answers for a variety of modern problems, such as removing unnecessary costs, decreasing wait times, boosting production and efficiency, and simplifying IT administration issues.
